16 mm x 5 mm x 3 mm, FR4 material, Impinj M4 chip, 1~ 2 meter read distance, IP68, ISO18000-6C & EPCglobal ClassI Gen2 protocol
Download Specification

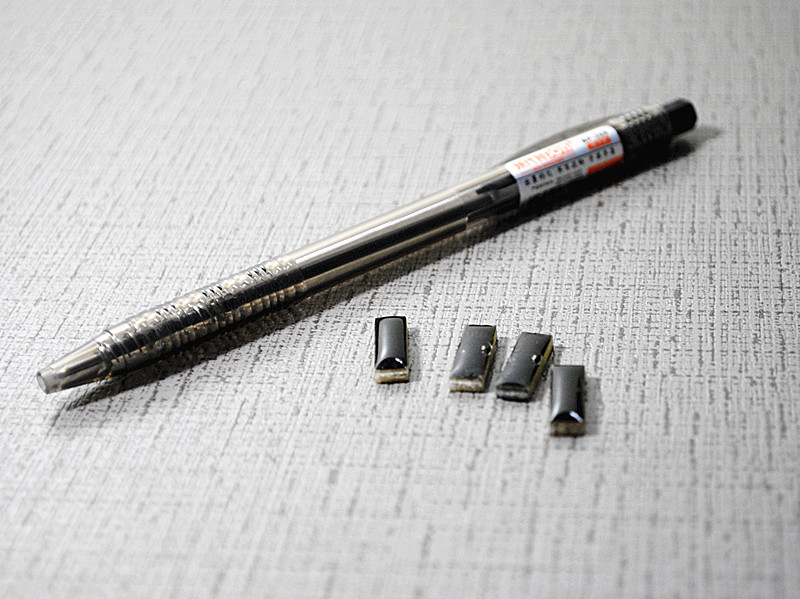

GEE-MUT-210 is one of the smallest on metal rfid tags in industry. Encapsulated by fiber reinforced material with wave-absorbing meterial, this type of metal rfid tags can be read at distance of 1-2 meters, therefore is widely used in IT asset tracking , medicine management .
Main features:
● high performance RFID chip with industry's highest RF performance
● Highest sensitivity, able to directly applied on metal surface
● FR4 material, smallest on meta UHF tag in industry, with small profile of 16mm x 5 mm x 3 mm
● 1-2 meter read distance with high identification speed
● Multiple tags operation allowed
● Environment adaptability, resistance to high temperature, water
● Green products, ROHS, SGS compliance
Physical |
|
Material |
FR4 + 3M adhesive tape |
Dimension |
16 mm (L) * 5 mm (W) * 3 mm (T) |
Weight(g) |
2 g |
Install methods |
3M adhesive tape |
Personalization |
logo, text, serial number |
RF |
|
Frequency range |
860-960 MHz |
Chip type |
Impinj Monza 4E ( or user specify ) |
Read distance |
>4m (under 1W , 6dBi circular polarizing antenna) |
User memory |
128bits |
EPC memory |
496bits |
Environment |
|
Working Condition |
–40 to +85 °C |
Storage Condition |
–40 to +85 °C |
Waterproof |
IP68 |
Protocol |
ISO18000-6C & EPC ClassI Gen2 |
Application |
IT asset tracking |
Machinary tracking |
RFID, or Radio-Frequency Identification, is a method of storing data and retrieving it via radio waves. Much in the same way a barcode can store information about a type of product, RFID tags contain unique identifiers that correspond to inventory database records. Switching to RFID in your logistics chain offers some significant advantages over traditional inventory control methods.
WIRELESS SCANNING
One of the major advantages of RFID in logistics is how quickly RFID tags can provide information compared to barcoding or other systems. With a barcode, you have to pass each code over a scanner to register the item. RFID works wirelessly, so you can point a scanner at a box of items and register each one without having to take them out first. A powerful enough RFID scanner could inventory entire rooms at once, making inventory tracking a much faster process.
UNIQUE TRACKING
RFID tags contain a microchip or other storage device that can contain a large amount of information. This allows you to place individual identifiers on products, rather than using a single barcode for an entire class of items, and to follow individual items through your logistics chain, instead of needing to extrapolate that data from inventory numbers. This also allows you to track a defective item back to its source in a much easier manner than with other tracking methods.
REAL-TIME UPDATES
Because scanning and inventory control is much faster with RFID than with other forms of management, the system lends itself to integration with wireless communication systems and real-time inventory management systems. This allows you to query the database at any time and find out exactly how much of a given product you have on hand, instead of getting numbers that may be days or weeks old. RFID scanners built into the entrances of warehouses can even scan crates as they enter and leave, providing instant updates of inventory totals that can propagate to other users across the company network.
INTEGRATION WITH OTHER SYSTEMS
The same RFID tags that provide inventory information can also provide other services as well. Security scanners at building exits can let your system know instantly when any product leaves the premises, allowing you to spot theft or misdirected shipments quickly and correct the problem. Likewise, scanning RFID tags at entry and exit points allows confirmation of shipping and delivery of goods, allowing you to trace a shipment as it moves through your logistics chain, and provide accurate estimates of arrival to customers or other business units.
