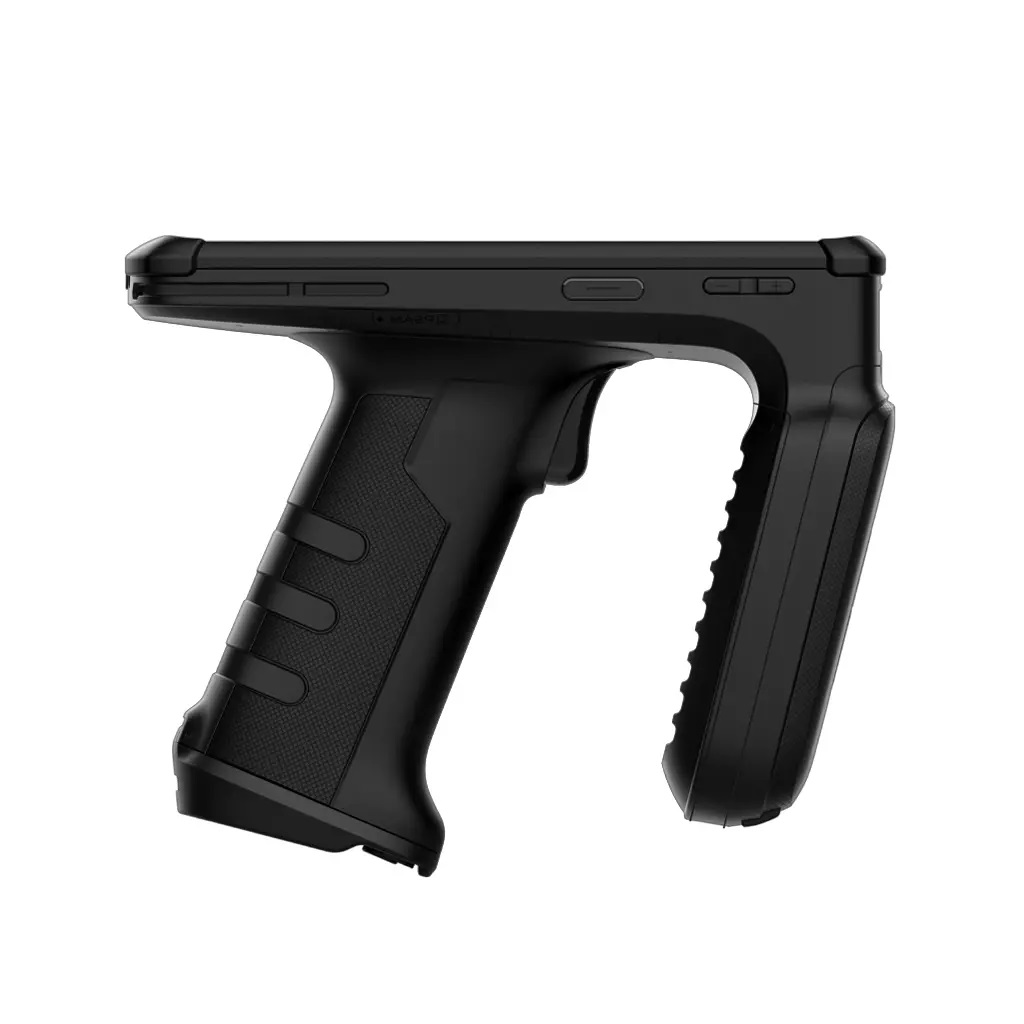

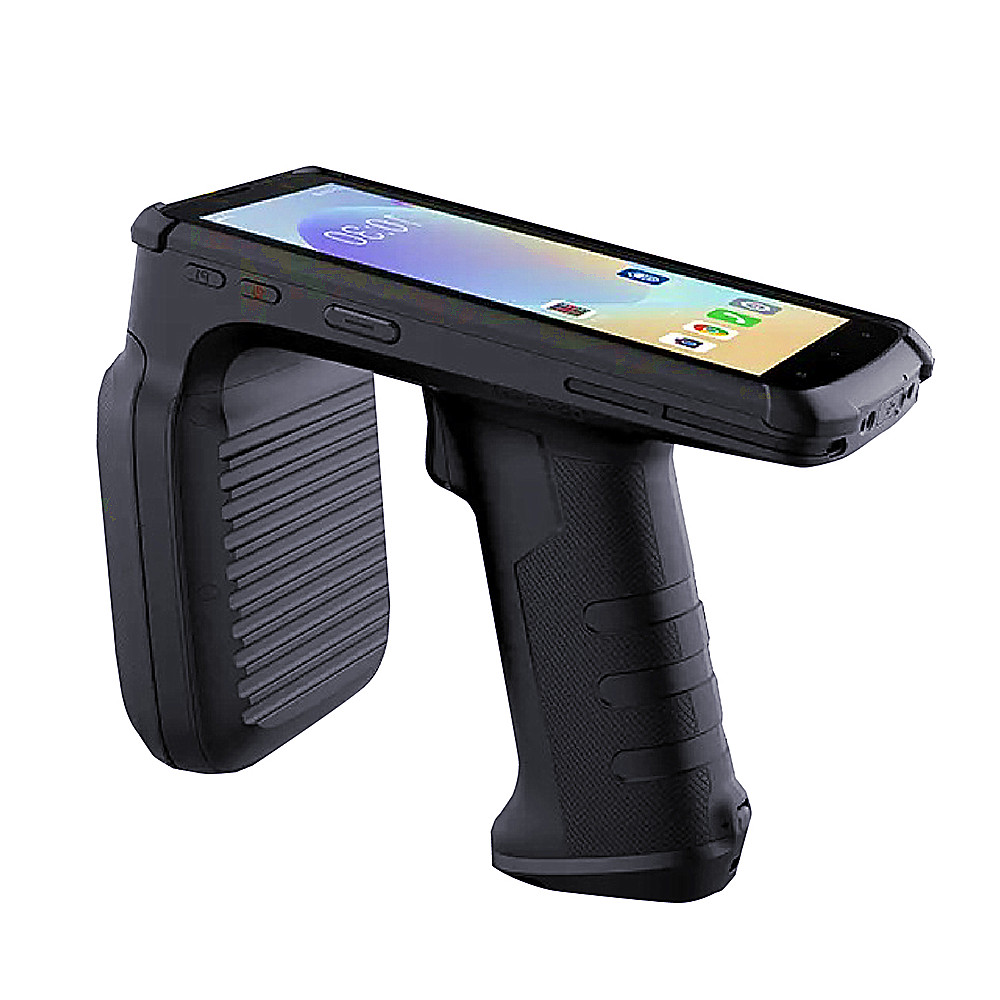

Utouch2 Handheld UHF RFID reader

Utouch2 Handheld UHF RFID reader

170(H)×80(W)×132.7(T)mm, MTK 8788 Octa core CPU, 4 GB RAM+ 64 GB ROM, 5.5 inch touch screen,  UHF/ HF RFID and 1D/2D barcode suppported, impinj E710 module, > 9 meter read distance, 700 tag/ second inventory rate,  Android 12 OS, 4G/3G/2G, Wifi, Bluetooth, GPS supported, 11700 mAh Li-ion battery, ISO18000-6C& EPC Gen2 protocol  compliance

Download Specification

OverviewSpecificationApplicationsSupport

Utouch 2 is a Gen2 handheld rfid reader based on Andriod 12.0 OS. Configured with MT8788 Octa core CPU, 4GB RAM + 64 GB ROM, 5.5“ touch screen, impinj E710 uhf rfid module and optional NFC and 1D/2D scanner, it can support both UHF, HF and 1D/ 2D barcode scanning with excellent read distance of up to 20 meter and rfid tag inventory speed of 700 tags/second. 4G/3G/2G/ Wifi/ Bluetooth wireless communication also enable user to easily and fastly connected into network, which is widely used in retail, warehousing, public assets management, etc.





Main features

•   MTK8788 8 core CPU, 2.8 Ghz, 70% computing performance improvement, 110% graphic performance improvement than Utouch

•   5.5 "  touch screen, 4 GB RAM + 64 GB ROM

•   11700 mAh Li-ion battery ( added device battery), more battery capacity compared to Gen 1 Utouch

   4G/ 3G/ 2G/ Wifi/ Bluetooth wirelss communication, GPS/ Beidou/ Glonass Positioning

   FCC ( North America)  902~ 928 Mhz,  ETSI ( EU) 865~ 868 Mhz

•   Impinj E710 UHF RFID chip,  1- 33 dBm RF ouptut

•   > 9 meter read distance ( H47 tag), > 700 tags/second inventory speed

   Optional NFC module and 1D/2D barcode engine

   ISO18000-6C & EPC C1G2 protocol, optional IEC14443A/ B, ISO15693 protocol



Software interface- system

utouch-interface1.png utouch-interface2.png

utouch-interface3.pngutouch-wifi bluetooh.png



Software interface- UHF reader

utouch-uhf 1.png utouch-uhf 3.png



Software interface- Phone/ Camera

utouch-phone.png utouch- photo.png



Model:Utouch2
Physical Characteristics ¡¡ User Environment ¡¡
Dimensions 170(H) * 80(W) *132.7(T)mm   Operating Temp -20 C to +50 C
Weight 630g   Storage Temp -40 C to + 70 C
Display 5.5 inch, 1440*720   Humidity 5% to 95% RH non-condensing
Touch Panel Multi-touch panel, gloves and wet hands supported   Drop Multiple 2.0 m drops to marble across the operating temperature range
Power 11700mAh (Host battery 5000mAH + Grip battery 6700mAh replaceable)   Tumble 1,000 1.64 ft./0.5 m tumbles (2,000 impacts)
  Bottom type-C USB interface, support QC 3.0, support intelligently identifying PC and charger;   Waterproof IP67
  Support charging cradle for charging the pistol grip.   ESD ±15kV Air discharge, ±8kV direct discharge
SIM Card Slot SIM+TF
Expansion Slot Micro SD Card, 256GB SDHC compatible
Notification Sound, Vibrator, LED indicator
Keypad Volume +, Volume -, Power on/off button, 2 scan buttons, pistol grip scan button, and 1 customer key
Sensor Gavity sensor, light sensor, distance sensor, electronic compass, gyroscope

Performance Characteristics ¡¡ Wireless ¡¡
CPU Octa core MTK8788 2.0GHz   WLAN IEEE 802.11a/b/g/n/ac (2.4G/5G dual-band WIFI 6)
OS Android 12.0   4G/ 3G/ 2G 4G:B1/B3/B5/B7/B8/B20/B28/B34/B38/B39/B40/B41
RAM+ ROM 4GB+64GB     3G: B1/B2/B5/B8/B34/B39/BC0
        2G: 850/900/1800/1900MHz
      Bluetooth Bluetooth 4.2 (Support BLE)
      GNSS GPS/AGPS, GLONASS, Beidou

UHF ¡¡ ¡¡ Barcode Scanning ¡¡
Frequency 840-960MHz (may be slightly different depending on the country or region), default 902-928MHz   Scan Engine 2D Image scan engine
Protocol ISO-18000-6C, EPCC1G2   1D Symbologies UPC/EAN, UPC/EAN , Code128, GS1-128, Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,  IATA 2 of 5, Industrial2 of 5, Codabar, MSI ,Code11, etc.
Antenna 5dBi circular polarization, default as 920-925MHz   2D Symbologies PDF417, MicroPDF417,Data Matrix, Maxicode, QR Code, MicroQR, Aztec, etc.
Power 1~33dBm
Reading Range >9m @impinj H47 (depending on the tag and environment)
Writing Range 0- 6m (depending on the tag and environment)
Multi-tag reading 700 tags/second@impinj H47
Note *Ranges and rates depend on tags and environment

NFC
¡¡ ¡¡ Camera ¡¡
Protocol Support ISO15693, ISO14443A/B (without encryption protocol), ISO14443A encrypted tags (Mifare one S50, S70 and the compatible cards), support NFC protocol and Identification Cards.   Camera
Front camera:5M pixel
Frequency 13.56 MHz     Rear camera: 13M pixel

Accessory ¡¡ ¡¡ ¡¡ ¡¡

¡¡





      USB Charger Type-C USB cable ¡¡
 Charging Dock
Grip battery

The fashion industry was one of the first retail sales sectors to adopt RFID technology

In recent years, mainly in the USA and Europe, dozens of fashion retailers like Marks & Spencer, Levi’s, Throttleman, American Apparel, Le Coq Sportif, Karstadt, Dillards and Galeria Kaufhof have implemented RFID product identification projects to improve their supply chain processes and retail outlet operations.

For such an industry, experiencing seasonal peaks and handling large volumes of goods, the use of RFID tags in the supply chain offers significant advantages:

-    A major improvement in inventory accuracy and speed, resulting in better supply management, greater on-shelf availability and therefore more sales.A clear illustration of the advantages of RFID is that it enables bulk, ‘on-the-fly’ reading, thereby cutting inventory times by 90% and, at the same time, substantially improving inventory accuracy, as RFID leaves little room for human error and information on the style, size and color of an article can all be stored on the tag.

-   Unprecedented fashion logistics productivity gains can be achieved thanks to improved reception, shipment and inventory processes in manufacturing factories, distribution centers and stores.The simultaneous, contactless and ‘on-the-fly’ reading of hanging articles and articles folded into boxes radically reduces the time spent counting and controlling articles during reception and shipment operations. Because it takes only a few seconds to identify all the articles on a pallet, a rack or in a parcel, our customers are spending 12 times less time checking their goods.

Thanks to RFID technology, today we have easier and abundant life than before. It not only change the way we purchasing, but also change the way of production.   It builds an efficient information highway between the manufacturers and end customers, at one end of highway, manufactures can get instant sales status and make right decision on business, while at the other end, customers can directly get the products details and enjoy the fast purchasing  that high technique brought.

Though there are still some concerns upon the newly emerged RFID technology, however as more successful stories come we believe the bright future of RFID technology will come soon.
