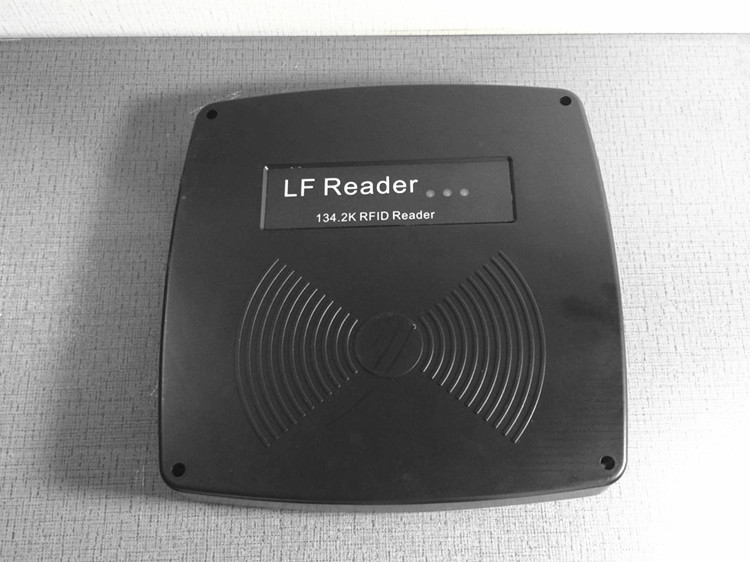

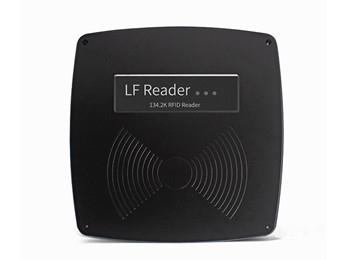

GEE-AR-200  Long range RFID Animal reader

GEE-AR-200 Long range RFID Animal reader

134.2 kHz/ 125 kHz, EM4200/ EM4205/ EM4305/ ATA5577/  Hitag chip supported, read only,  45 cm read distance, RS232 / RS485 interface,  ISO11784/ 11785 protocol

Download Specification

OverviewSpecificationApplicationsSupport

GEE-AR-200 is a long range RFID reader  for animal identification. It worked at 134.2 kHz/ 125 khz, supported EM4200, EM4205, EM4305, Hitag animal tag read & write, fully comply with ISO11784/ 11785 protocol.   Typical appliation: encoding & card issue in animal management


Main features:

•  260x 260 x  35 mm, ABS enclosure

•  134.2 kHz/ 125 kHz

•   ISO11784/ 11785, FDX-B and FDX-A supported

•   Read only, 45 cm for Φ 30 mm ear tag:

•    RS232, RS485 interface

•   ISO9001 Quality control system just for quality


Model:GEE-AR-200

Physical
Material                 ABS
Dimension                 260mm (L) x 260mm(W) x 35mm(H)
 Weight                 1.5 kg
RF / Electrical
Frequency                 134.2 kHz
Read distance                 45 cm, for glass tag Φ 30 mm
Chip support                 EM4100, EM4469, EM4305, ATA5577, HiTag-S
Interface                 UART, RS232, RS485, Wiegand26
 Power supply                 DC +15V, 150 mA
OS support                 Window 2000/ XP/ Vista/ 7
Develop environment                 C#, SDK pack
Protocol                  ISO11784/ 11785, FDX-B, FDX-A
Environment
Working condition                  -10 ~ 45°C , 10~80% RH
Storage condition                  -20 ~ 60°C, 5~ 95% RH

As RFID technology gradually involved in normal life, the usage of RFID technology have greatly change the way we living and bring signifition convenience to us.

Digit RFID library, which using RFID technology for management and control, was firstly introduced in National Singapore libraries with NXP ICODE Chip for indentifying and tracking, then the trends rapidly expanded into international, nowadays only in China, the number of digit libraries have exceeded over 100.

That is a tremendous achievement since the RFID technology first applied in early 21st century. And there are abundant reasons for RFID libraries completely replaced the traditional ones.

Advantages of RFID Libraries


Rapid check-out / check-in


The use of RFID reduces the amount of time required to perform circulation operations. The most significant time savings are attributable to the facts that information can be read from RFID tags much faster than from barcodes and that several items in a stack can be read at the same time. While initially unreliable, the anti-collision algorithm that allows an entire stack to be check-out or check-in now appears to be working well.


The other time savings realized by circulation staff are modest unless the RFID tags replace both the EM security strips or RF tags of older theft detection systems and the barcodes of the library management system - i.e., the system is a comprehensive RFID system that combines RFID security and the tracking of materials throughout the library; or it is a hybrid system that uses EM for security and RFID for tracking, but handles both simultaneously with a single piece of equipment. There can be as much as a 50 percent increase in throughput. The time savings are less for check-out than for check-in because the time required for check-out usually is extended by social interaction with patrons.


Simplified patron self check-out / check-in


For patrons using self check out, there is a marked improvement because they do not have to carefully place materials within a designated template and they can check out several items at the same time.
Patron self check-in shifts that work from staff to patrons. Staff is relieved further when readers are installed in book-drops.


High reliability


1. The readers are highly reliable. RFID library systems claim an almost 100 percent detection rate using RFID tags.
2. There is no false alarm than with older technologies once an RFID system is properly tuned.
3. RFID systems encode the circulation status on the RFID tag. This is done by designating a bit as the "theft" (EAS) bit and turning it off at time of check-out and on at time of check-in. If the material that has not been properly check-out is taken past the exit sensors, an immediate alarm is triggered.


High-speed inventorying


A unique advantage of RFID systems is their ability to scan books on the shelves without tipping them out or removing them. A hand-held inventory reader can be moved rapidly across a shelf of books to read all of the unique identification information. Using wireless technology, it is possible not only to update the inventory, but also to identify items which are out of proper order.


Automated materials handling


Another application of RFID technology is automated materials handling. This includes conveyer and sorting systems that can move library materials and sort them by category into separate bins or onto separate carts. This significantly reduces the amount of staff time required to ready materials for re-shelving.


Long tag life
Finally, RFID tags last longer than barcodes because nothing comes into contact with them. Most RFID vendors claim a minimum of 100,000 transactions before a tag may need to be replaced.


Related Products

DescriptionDateDownload
GEE-AR-200 134.2 kHz long distance RFID reader spec.pdf2013-05-20
208 KB
GEE-AR-200 134.2 khz RFID reader SDK.rar2013-05-20
166 KB
