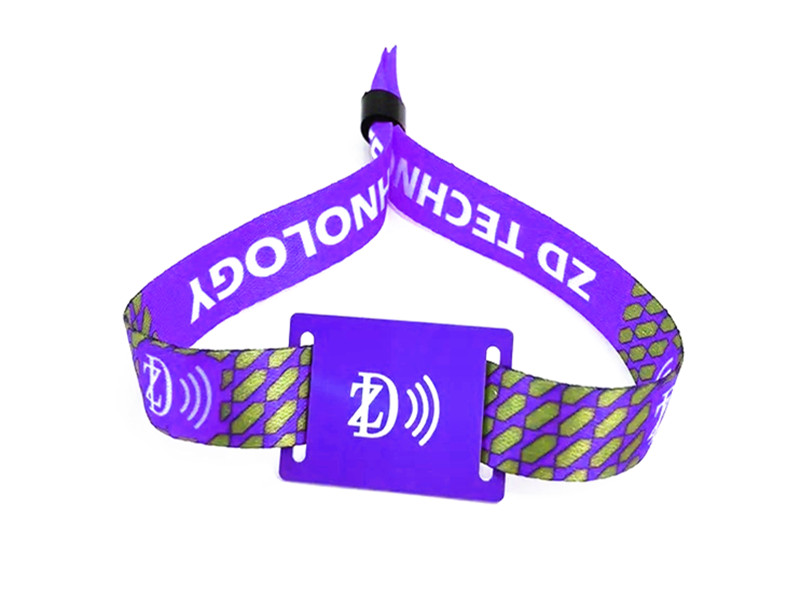

GEE-WB-010 Fabric rfid wristband

Overview Datasheet Download

GEE-WB-010 is a fabric RFID wristband for events and concert. Integrated with RFID chip inside, it can be read / write contactlessly. With personalized ribbon and tag, this type of wristband is very fashion. Typical application: Concert wristband, event wristbands

Main features:

• 15mm x 350 mm, Thermal transfer ribbon, printed tag

• Easy for wearing and identifying

• High performance RFID chips with programmable memory

• Logo, number printing available

• ISO9001 Quality control system

• Green material with ROHS and SGS certification

Physical	��
Material	Tag: PVC, Ribbon: Satin/ Fabric
Size	Tag: 40 x 25 mm, Ribbon: 350 x 15 mm
Antenna	Copper coiling
Weight	5 gram
Printing	Tag: CMYK full color printing Ribbon: Thermal transferring
Ribbeon Clip	Aluminium tube, Plastic tube slide lock, Bell shaped slide lock, Plastic snap
Packing	100 pcs/ box, 10 boxes/ ctn
Protocol	IEC14443A, IEC15693, ISO7810
RF features	��
Frequency	13.56 Mhz/ 125 kHz
Chip	13.56 Mhz: Mifare 1k ( F08), Mifare ultralight, UltralightC, Ntag213, ICODE SLIX. 125 Khz: EM4100, EM4305, T5577
Memory	As per chip type
Read distance	2- 10 cm
Data retention	10 years
Environment	��
Operating condition	-40 ~ 60 Degree Celsius
Storage condition	-20 ~ 45 Degree Celsius
Others	waterproof
Shelf life	2 years

��	��	��
GEE-WB-010 Fabric RFID wristband specification.pdf	2023-08-04	774 KB
