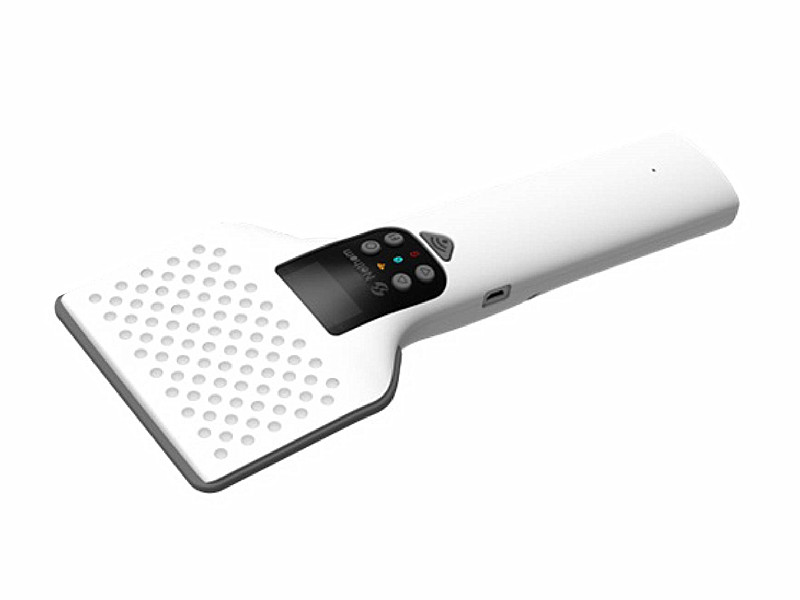

Swing-U bluetooth UHF RFID reader

Overview Datasheet Download

Swing-U is one of the fastest and furthest handheld UHF RFID reader in the world.

Swing-U read rate : Ave. 50 tags/ second, 200 pcs clothes with RFID UHF tag in the box

Read Range : 25 meter with Alien label tag(G-tag)

Search specific single RFID tag

1. Swing-U will alarm if find the specific tag, a direction arrow will show on LCD display indicating the direction of the tag

2. At the same time Swing-U will auto decrease the RF output power, which will short the read distance

3. Swing-U re-search the specific tag, and will alarms if find the specific tag, then repeat 1, 2, 3 until user find the specific tag.

Physical	��
Material	ABS
Size	105 mm( L) x 35mm W) x 255 mm (H)
Weight	240 gram
Electrical	��
Display	1.3" White OLED LCD
Key	Power key, RFID key, Menu key, Total 6 keys
Battery	Rechargeable Li-ion battery, 3.7 V/ 3000 mAH, 3 hours continous work
Status LED	RFID status, BT status, Charging status
Audio	5 level, Max (78 dB), Medium (70 dB), Min( 62 dB), Mute, Vibrate
DC charger	Input AC 100-240 V, 50-60 Hz, Output DC5V/ 2A, Micro USB
Interface	USB2.0, Bluetooth 2.0
Optional Barcode Scanner	1D Linear scanner, 2D CMOS scanner
RF	��
Working frequency	FCC( North America) 902~ 928 Mhz
	ETSI ( EU) 865~ 868 Mhz
	SRRC ( China): 920~ 925 Mhz
Chip	Impinj R2000
Read/ write range	Max 25 meter/ 15 meter
Antenna	Built-in linear polarization antenna
RF output power	Max 30 dBm, 1 dBm/step adjustable
Work mode	Multiple tag inventory, Single tag search (auto-decrease output dBM, Audio indication)
Protocol	ISO18000-6C & EPCglobal Class I Gen 2
Software	��
OS	Support Windows, IOS, Andriod OS
Demo software & APK	Provided
SDK	Provided Source code
Wireless	��
Bluetooth ( default)	Class 2.0+ EDR, SPP profile
Environment	��
Operating condition	-10 ~ 50 C, 5~ 95% RH, no condensation
Storage condition	-20 ~ 60 C, 5~ 95% RH, no condensation
Accessory	��
Data cable	1 set, USB 2.0 cable
Charger	1 set
Li-ion Battery	1 piece

��	��	��
