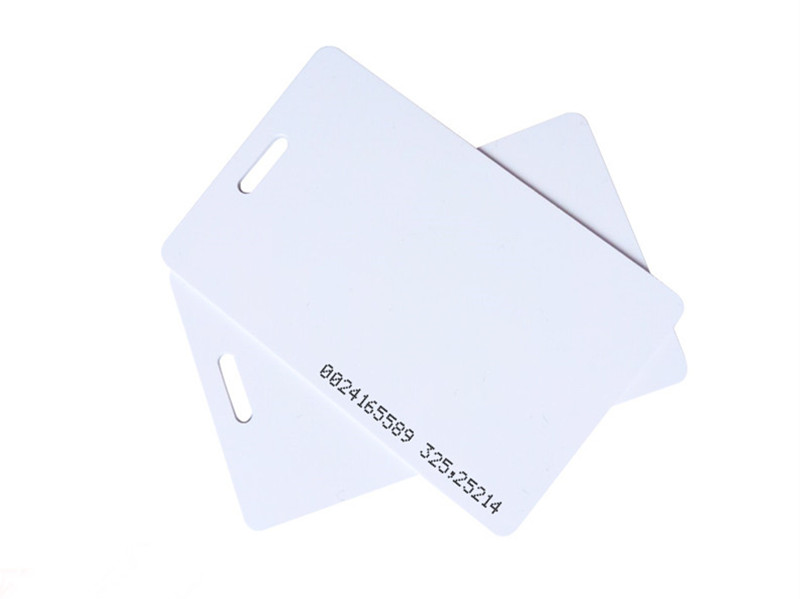

GEE-LFC-100 EM4100 clamshell card
GEE-LFC-100 is a typical type of RFID card for access control and identification, which worked at frequency of 125 kHz , with EM4100 chip embedded. Cost-efficient and contactless feature make it widely used as access control card, ID card in enterprise, business and government.
Main features:
• 86 mm x 54 mm, 1.9 mm thick
• Contactless interface allow fast identification and check in/out.
• High performance Etmel EM4100 chip embedded
• Inkject ID number on the surface
• White blank hard clameshell enclosure
• ISO9001 Quality control system guarantee diamond like quality
• Green material with ROHS and SGS certification
|
Standard
|
IEC18000-1/2, ISO9001:2008
|
||
|
|
|||
|
Physical
|
Dimension
|
86 mm x54mm
|
|
|
Thickness
|
1.9 mm
|
||
|
Material
|
ABS enclosure
|
||
|
Printing
|
White blank
|
||
|
ID number
|
inkjected 18 digits
|
||
|
Packing
|
100 pcs/ box, 10 box/ carton, 10 kg/ carton
|
||
|
|
|||
|
Electrical
|
Chip
|
EM4100
|
|
|
Memory size
|
13 Byte read only
|
||
|
Frequency
|
125 kHz
|
||
|
Antenna
|
Copper coiling
|
||
|
Read distance
|
10 cm
|
||
| Read duration |
> 100,000 cycles
|
||
|
|
|||
|
Life Time
|
3 years
|
Warranty Period
|
1 Year
|
|
|
|||
|
Application
|
• Access control
• E-passport in enterprise or government
|
||
|
|
|||
|
Environment
|
Operating
|
-25 C to +70 C, 5~ 95% RH, no condensation
|
|
|
Storage
|
-5 C to + 45 C, 5~ 95% RH, no condensation
|
||
