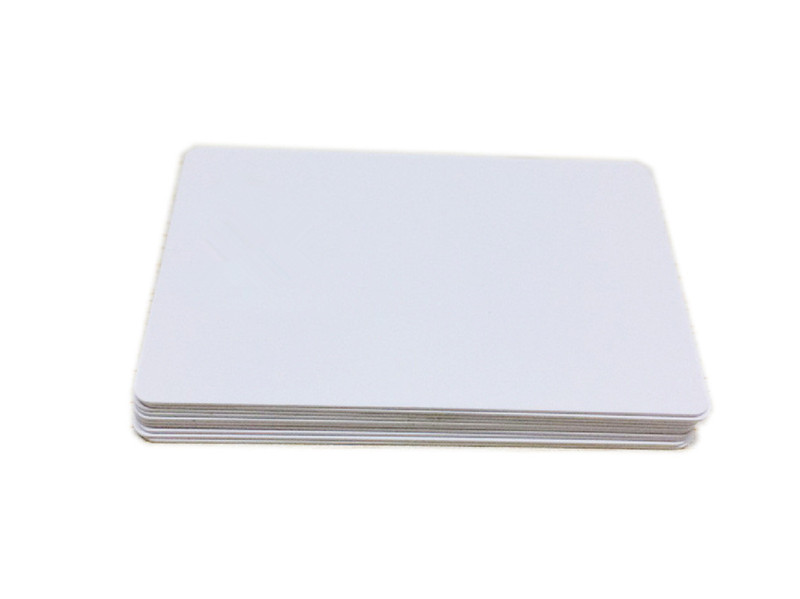

GEE-HFC-FM1208 Fudan FM1208 CPU Card
GEE-HFC-FM1208 is a high secured CPU card. Worked at 13.56 Mhz with Fudan FM1208 CPU chip, it is very secured with 3DES algorithm, 32 KB program memory and 8 KB data memory, it is fully compliance with PBOC 2.0 standard. Typical application: E-government, payment, access control. banking, and public transport applications
Key features:
¡ñ Built on FMCOS OS and PBOC 2.0 standard
¡ñ High secured FM1208 CPU chip, 8051 MCU with 32K ROM + 8K data EEPROM
¡ñ 256 Byte iRAM + 384 Byte xRAM
¡ñ TIple-DES/ single-DES
¡ñ IEC14443 Type A protocol compliance
¡ñ SPA, DPA resistant controller
| Physical | ¡¡ |
| Material | PVC |
| Size | 85 x 54mm |
| Thickness | 0.84 mm |
| Printing | White blank/ Customized printing |
| Packing | 200 piece/ box, 10 box/ ctn, G.W: 20 kg/ ctn |
| RF & Electrical | ¡¡ |
| Operating Frequency | 13.56 MHz |
| Hardware | Fudan FM1208 |
| OS & Applets | FMCOS, support e-purse applets |
| MCU | compatible with Turbo 8051 |
| ROM/ EEPROM | Program memory: 32 KB ROM, Data memory: 8 KB EEPROM |
| RAM | iRAM: 256 Byte, xRAM: 384 Byte |
| Security | 3DES / single-DES processor, SPA, DPA resistant controller |
| Contactless interface | ISO/IEC 14443 Type A |
| Environment | ¡¡ |
| Working environment | -20 ~50 Degree Celsius, 5~ 95% RH, No condensation |
| Storage environment | -20 ~ 70 degree Celsius, 5~ 95% RH, no condensation |
| ÃèÊö | ÈÕÆÚ | ÏÂÔØ |
|---|---|---|
| GEE-HFC-FM1208 CPU card specification.pdf | 2020-12-28 |  472 KB |
| Fudan FM1208 CPU chip datasheet.pdf | 2020-12-28 | 222 KB |
