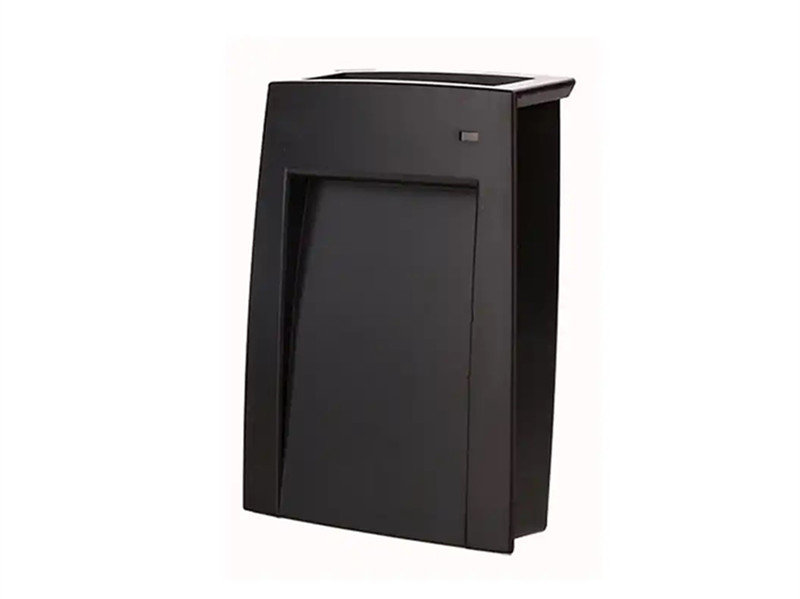

GEE-AR-100 134.2 kHz RFID Animal reader writer
GEE-AR-100 is a specialized RFID reader writer for animal identification. It worked at 134.2 kHz/ 125 khz, supported EM4200, EM4205, EM4305, Hitag animal tag read & write, fully comply with ISO11784/ 11785 protocol. Provide demo software, DLL, C++,VC,Java,C#, vb, vb.net, Delphi source code. Typical appliation: encoding & card issue in animal management
Main features:
• 120x 88 x 26 mm, ABS enclosure
• 134.2 kHz/ 125 kHz
• ISO11784/ 11785 protocol supported
• Read & writee : 3 cm- 10 cm
• USB interface
• ISO9001 Quality control system just for quality
• CE, ROHS compliance
| Physical | |
| Material | ABS |
| Dimension | 120mm (L) x 88mm(W) x 26mm(H) |
| Weight | 100 g |
| RF / Electrical | |
| Frequency | 134.2 kHz |
| Read distance | 3~ 10 cm |
| Chip support | EM4100, EM4469, EM4305, ATA5577, HiTag-S |
| Interface | USB2.0 |
| Power supply | DC +5V from USB port |
| Optical/ Acoustic indication | Tri-color LED, Monotone buzzer |
| OS support | Window 2000/ XP/ Vista/ 7, Linux |
| Develop environment | C++, VC, Java, C#, vb, vb.net, Delphi |
| Protocol | ISO11784/ 11785, FDX-B, FDX-A |
| Environment | |
| Working condition | -10 ~ 45°C , 10~80% RH |
| Storage condition | -20 ~ 60°C, 5~ 95% RH |
| Packing | |
| Reader | 1 x |
| USB Cable | 1 x |
| 描述 | 日期 | 下载 |
|---|---|---|
| GEE-AR-100 134.2 kHz RFID Animal reader writer specification.pdf | 2013-05-19 |  231 KB |
| GEE-AR-100 134.2 kHz RFID Animal reader writer SDK.rar | 2013-05-20 | 130 kB |
